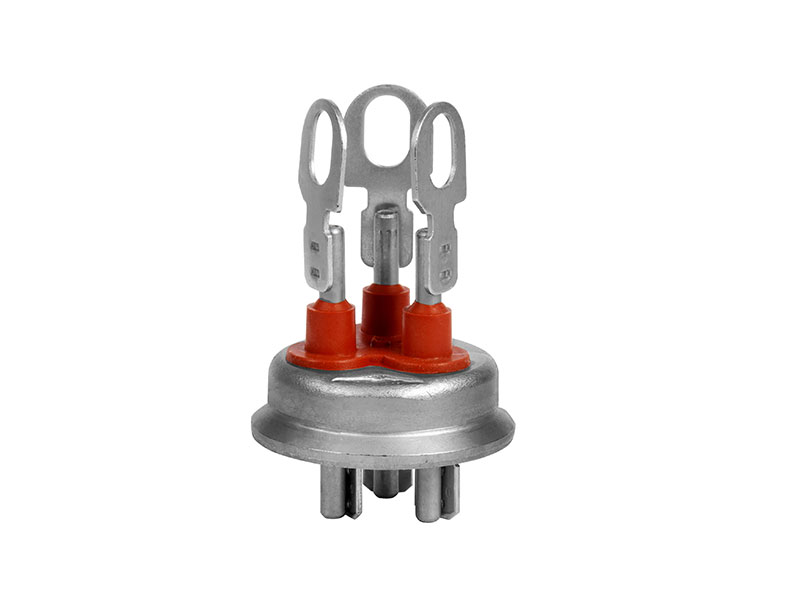

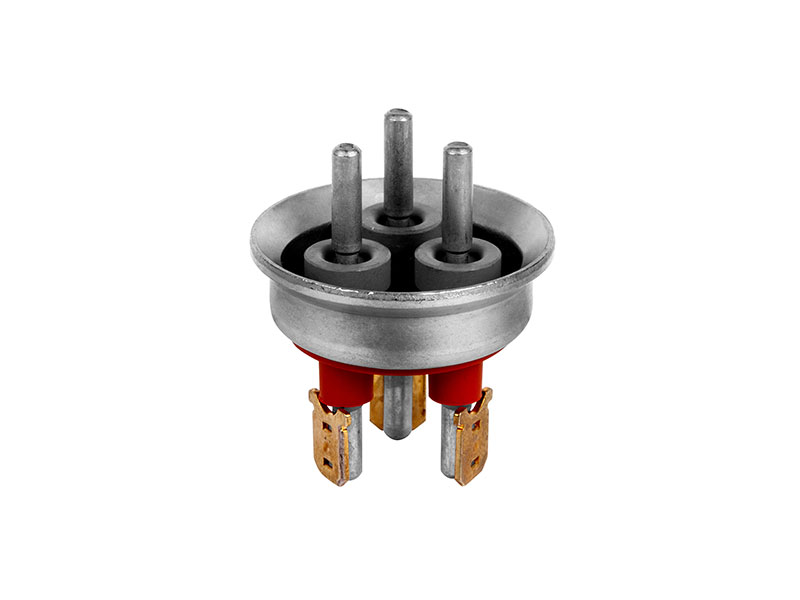

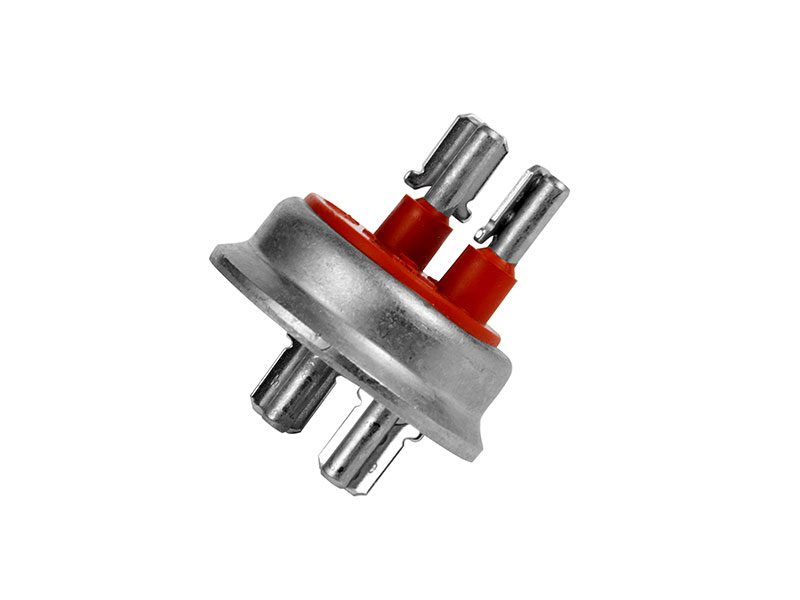

制冷压缩机密封接线柱

Applications: Compressor connectors manufactured by Capbit can safely and reliably connect power from an external power source to the motor inside the compressor, including all types of refrigeration compressor units; It is also suitable for water heaters, heat pumps, vending machines and other pressure vessels

Features: The product is glass and metal high temperature sintering sealed connector, core surface coating can choose copper, nickel, etc., the product inside ceramic can choose whether or not, connector side can choose whether or not rubber, the number of steel needle can also choose;

Can be customized according to size and functional requirements.

Typical specifications: Air tightness: Helium, <1×10-7cm3/sec

Insulation resistance: 500VDC >10000 Mω

Ac voltage: 3500VAC <0.5mA leakage current

Operating pressure: up to or above 2800psi, subject to client application test
