application area

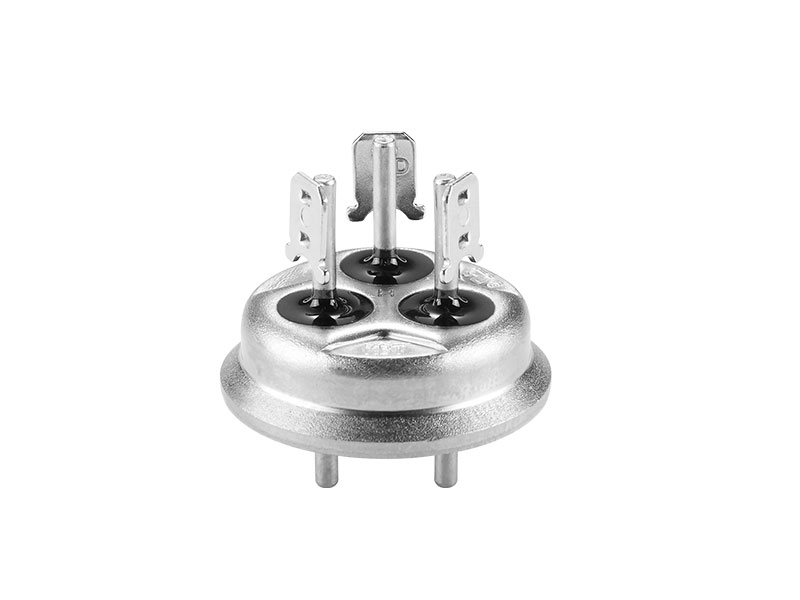

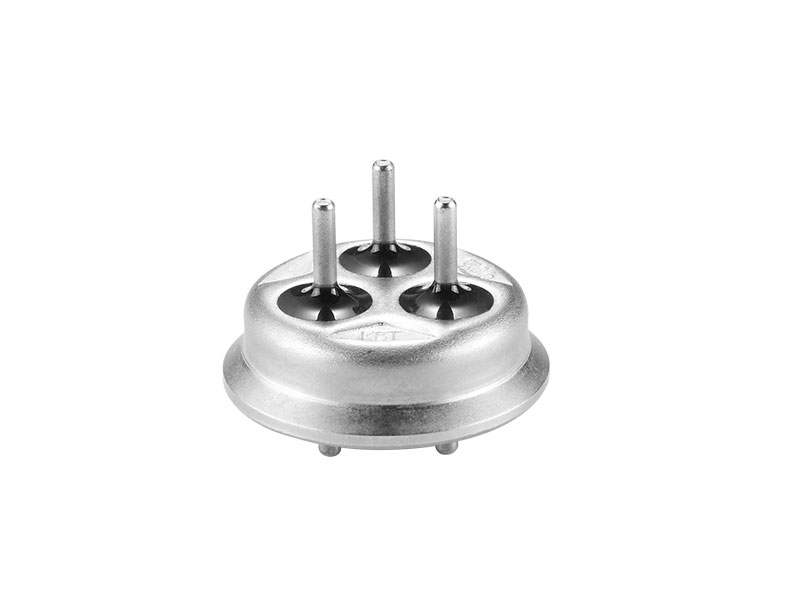

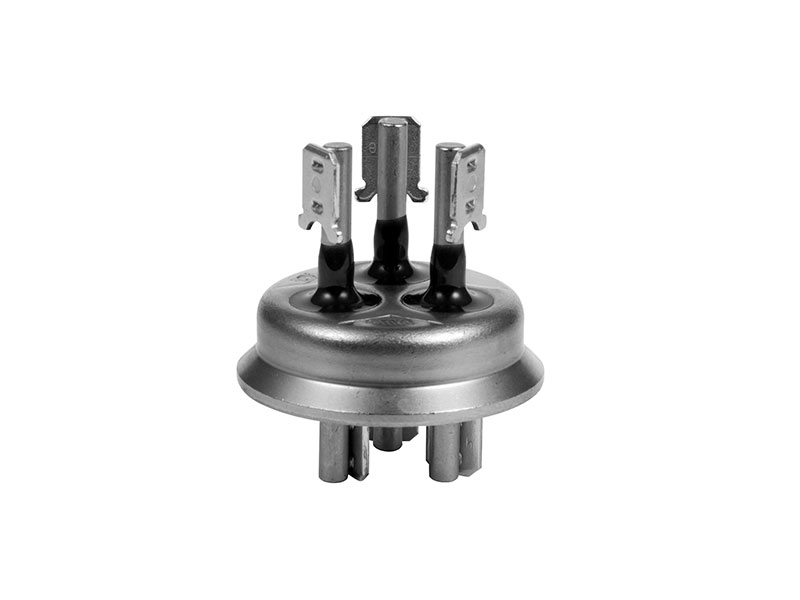

Refrigerators, air conditioning and other sealed compressors, each compressor with glass-metal sealing terminal are composed of a metal base, multiple steel needles and glass body. The vitreous mainly uses custom sodium barium glass, with extremely high electrical insulation. According to the needs of customers, we can customize the steel needle length, top electrode Angle, internal ceramic addition and other services.

product superiority

Our compressor glass-metal sealing products have a variety of excellent properties;

 High sealing;

High electrical performance.

class

series

CAP

PIN

soldering lug

beeline

insulation resistance

withstand voltage

going

external diameter

thickness

material quality

diameter

length

outside

interior

creepage distance

space length

voltage

current

outside

interior

outside

interior

Ice plug

YJ-1

20.2/23.3

1.25

Iron-chromium

2.3

27

Pin

Pin

2.6

2.0

2.6

1.2

1000MQ/DC500V

AC1000V / second

< 300V

< 15A

28.5/32.6

1.45

Iron-chromium

2.3

27

Pin

Pin

3.2

2.4

3.2

1.6

1000MO/DC500V

AC2000V / second

< 300V

< 20A

Empty plug

YJ-2

28.5/32.6

1.45/1.75

Iron-chromium

3.2

32.5

Tab

Pin

3.2

2.4

3.2

1.6

1000MQ/DC500V

AC2000V / second

< 300V

< 25A

YJ-3

28.5/32.6

1.45/1.75

Iron-chromium

3.2

36.5

Tab

Pin/Tab

6.4

4.8

6.4

3.2

1000MQ/DC500V

AC3000V / second

< 300V

< 35A

Cu rush pith

< 300V

<50A
