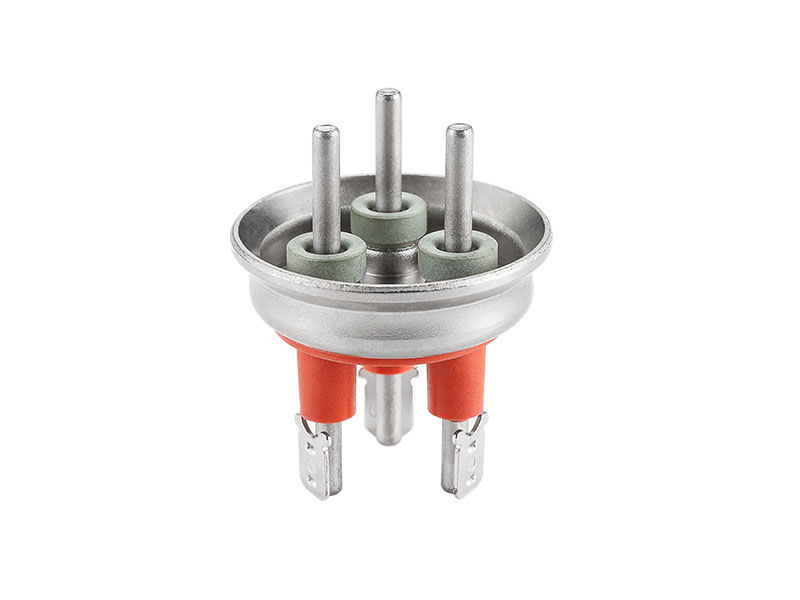

YJ-7-46S

YJ-7-46S

Model number: YJ-7-46S

Applications: Commercial/industrial compressors use high power, requiring connectors to withstand higher currents and operate in more demanding environments. According to the demand, PIN, solder and insulation materials are used in the new design.

Product advantages:

Customized according to customer needs, high applicability;

Adopt special packaging technology, high sealing performance;

Ceramic and rubber can be added to increase reliability according to the harsher operating environment.

Technical parameters:

CAP:

Minimum outside diameter: 33.3mm

Maximum outside diameter: 37.6mm

Thickness: 1.45mm/1.75mm

PIN:

Material: Iron-chrome /Cu core

Diameter: 3.2mm

Length: 46mm

Welding sheet:

External: PIN/TAB

Internal: PIN/TAB

Minimum distance:

Surface distance: space distance:

External: 12.7mm External: 9.5mm

Inside: 6.4mm Inside: 4.8mm

Insulation resistance:

10000MQ/DC500V

Voltage resistance:

AC3000V/ s

Working conditions:

Voltage: Current:

< 600V < 35A (iron-chromium)

< 600V < 50A (Cu core)
