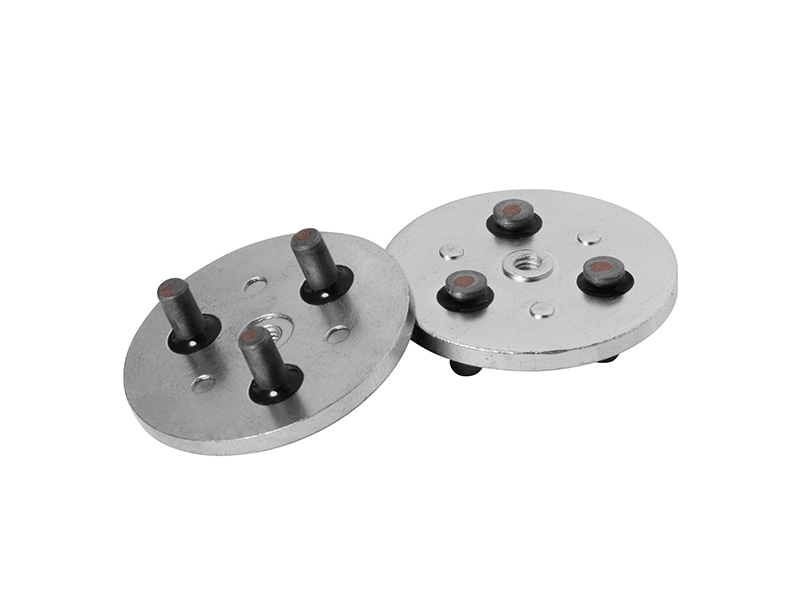

HDZ-Y-31

Application field. Application field

Commonly used in vacuum, electric light source, aerospace, high-frequency fiber electronics, flow, oil and gas, petrochemical and other power supply and signal connection. Features: The product is sintered with glass and metal, and the surface mirror layer can choose copper, silver, gold, etc., to meet the requirements of terminal application;

According to the terminal application requirements, it can meet the requirements of high voltage, high pressure, high current, high sealing and other different requirements.

Tightness: nitrogen leakage rate ≤1x10-9 Pa·m3/S

Insulation impedance: > 1OOOOMΩ, 500V DC

Breakdown voltage: > 2000V AC, 0.5 Ma leakage current

Working pressure: 3-30mpa, according to the specific application design
