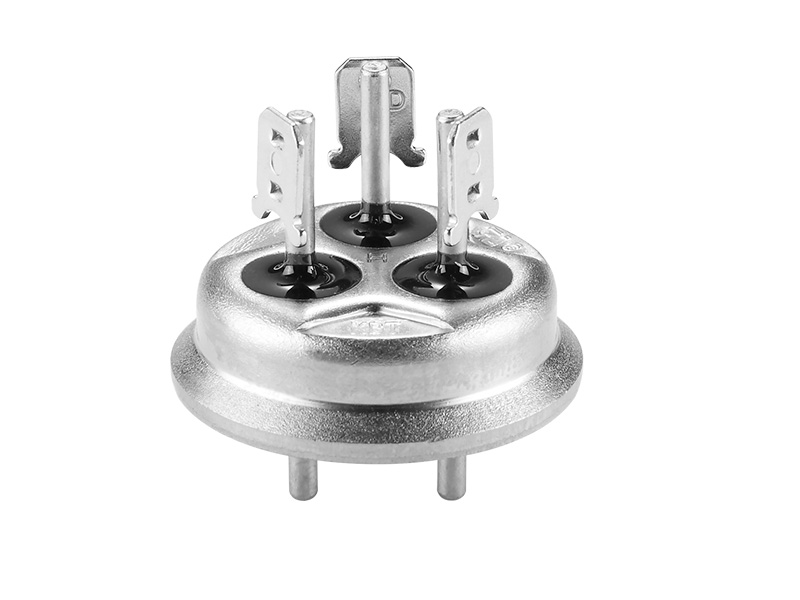

Model number: YJ-2

Application field: air conditioning and other sealing compressors. The glass-metal sealing terminal of each compressor is composed of a metal base, multiple steel needles and glass body. The glass body is mainly made of customized sodium-barium glass, which has high electrical insulation.

Product advantages:

Our glass - metal seal products for compressors have a variety of excellent performance;

High sealing;

High electrical properties.

Technical parameters:


Minimum outside diameter: 28.5mm

Maximum outside diameter: 32.6mm

Thickness: 1.45mm/1.75mm


Material: Iron - chrome

Diameter: 2.3mm

Length: 32.5mm

Welding sheet:

External: PIN/TAB

Internal: PIN/TAB

Minimum distance:

Surface distance: space distance:

External: 3.2mm External: 3.2mm

Internal: 2.4mm Internal: 1.6mm

Insulation resistance: 1000MQ/DC500V

Resistance voltage: AC2000V/ s

Working conditions:

Voltage: Current:

< 300V < 25A
